Prototyp : Construct : MkIII - Easy Version

Wheels + Tires Rear Undertray   Front Splitter + Chassis   |   Bodywork   Details  |   Wheels + Tires  |   Finished!

wheels - Prepare parts. Cut out red slots.

wheels - Curve rim part d5, d10 and insert through slots on wheel faces d1 - d4. Split in rim should align with small red line at top of wheel face. Build and attach wheel nuts, matte-finish part a5 over thicker d16.

wheels - Completed wheel face and rim assembly. Align and attach wheel face center d7/11 and d15/17.

tires - Parts: b2, b13, b6, b20 : Prepare tire parts.

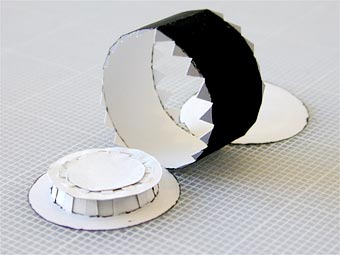

tires - Finished curved tire surface with inner backing part b6 (front) or b20 (rear). Wheel face is inserted into tabs on tire face.

tires - Competed wheel set. Each wheel has a unique face which depicts the brake caliper specifically for each corner of the car. On the MkIII, the front and rear brake calipers are on the leading side of the hub, angled forward.
